2023 Argo Magnum Xf 500







































Call for price

$0

Used
0KM
Availability: Brochure
Location: Cornwall
SHOPPING OPTIONS
Get a QuoteFinancing Pre-ApprovalTrade in QuoteRequest BrochureBook a Test Drive

NO QUIT. BECAUSE OUT HERE, THERE’S ALWAYS MORE TO DO.

When there are loads to haul, fields to work and trails to put behind you, there’s simply no room for machines that don’t cut the mustard. That’s why grit and guts come factory issued. The Magnum XF XF 500 is built for superior on- and off-road performance and take quality to a whole new level.

This side-by-side features a dependable 443cc liquid-cooled 4-stroke EFI engine, push-button 2WD/4WD with front differential lock, and impressive ergonomics for both driver and rider. We invite you to come kick the tires on this rugged machine. Just don’t be surprised if it kicks back.

    Specifications
    • Displacement: 443cc
    • Engine Stroke: 4-Stroke
    • Cylinder Arrangement: SOHC Single-Cylinder
    • Valve Configuration: 4 Valve
    • Fuel System: EFI
    • Cooling System: Liquid
    • Bore X Stroke: 89 X 71.2 mm
    • Compression Ratio: 9.1:1
    • Start Method: Electric Start
    • Ignition: ECU
    • Over Ride Button: Standard
    • Transmission Type: CVT Automatic
    • Final Drive: Shaft Drive
    • Differential Function: Front Differential
    • Drive System Type: Electronic 2WD/ 4WD /Lock
    • Electric Diff Lock: Yes
    • Gear Selection: H/L/N/R/P
    • Reverse: Yes
    • Engine Braking System (Ebs): Standard
    • Length: 106.3 in. (2,700 mm)
    • Width: 56.7 in. (1,440 mm)
    • Height: 72.8 in. (1,850 mm)
    • Seat Height: 32.9 in. (836mm)
    • Ground Clearance: 10 in. (254 mm)
    • Wheelbase: 72 in. (1,829 mm)
    • Towing Capacity: 1,200 lb. (545.5 kg)
    • Dry Weight: 1,025 lb. (465 kg)
    • Wet Weight: 1,080 lb. (490 kg)
    • Fuel Tank Capacity: 8.5 gal. (32 L)
    • Rider Capacity: 2
    • Suspension – Front: Independent Double A-Arm
    • Suspension – Rear: Independent Double A-Arm
    • Suspension Travel – Front: 6.9 in. (176 mm)
    • Suspension Travel – Rear: 6.8 in. (172 mm)
    • Brake – Front: Dual Hydraulic ??Disc
    • Brake – Rear: Hydraulic ?Disc
    • Foot Brake: Yes
    • Tire Size (Front): At25X8-12 (Maxxis)
    • Tire Size (Rear): At25X10-12 (Maxxis)
    • Wheel Rim: Steel
    • Electric Power Steering: No
    • Battery: Mf 18Ah
    • Front Rack: N/A
    • Rear Rack: N/A
    • Front Bumper: N/A
    • Hitch: Standard/2 in. Receiver
    • Winch: Accessory
    • Hand Guard: N/A
    • 12V Charger: Standard
    • Daylight Strip: Running Lights
    • Skid Plate: Plastic
    • Passenger Handles: Yes
    • Passenger Backrest: N/A
    • Storage: Underhood, Underseat, Tailgate, Glove Box
    • Front Brush Guard: Accessory
    • Usb Charging Port: N/A

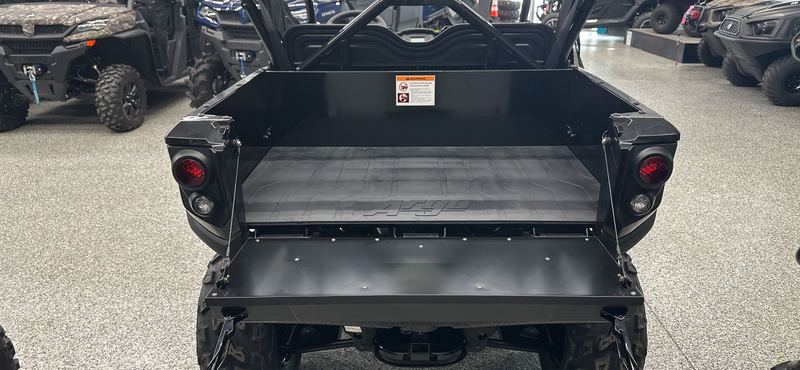

    • Rear Box Storage: 441 lb. (200 kg)
    • Instrumentation: DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/Lock INDICATOR, APS INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
    • Lighting: Dual 12V 35w high/low beam Dual with brake light
    • Color: Green
    DIMENSIONS/CAPACITIES

    Odometer: 0km

    Brand: Argo

    Model: Magnum Xf 500

    Body Style: UTV
