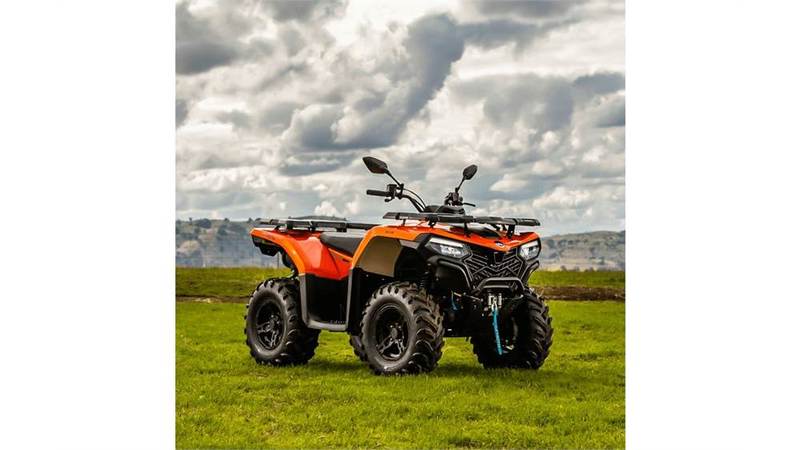

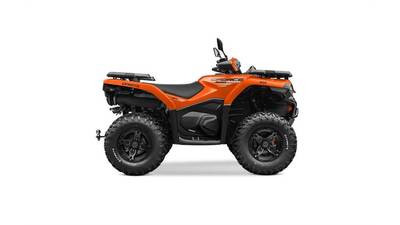

2023 CFMoto Cforce 500
x
Call for price
$0
Used
0KM
Availability: Brochure
Location: Kingston
A new platform for the 495cc model, the CFORCE 500 is stronger, sturdier and more ergonomic than the previous model. Equipped with aluminum rims, Electric Power Steering (EPS) and hand guards.
Engine
- Type: Single-Cylinder, liquid-cooled, 4-valves, 4-strokes
- Displacement: 495 cc
- Bore & Stroke: 91 x 76.5 mm (3.58 x 3.01 in)
- Compression: 10.3: 1
- Engine management: Fuel injected engine
- Cooling system: Liquid
- Starting: Electric
- Battery: 30 Amp
Size / Weight
- Length x width x height: 2386 x 1125 x 1150 mm (93.9 x 44.3 x 45.3 in)
- Wheelbase: 1260 mm (50 in)
- Ground clearance: 262 mm (10 in)
- Minimum turning radius: 2800 mm (110 in)
- Fuel tank capacity: 17 L (4.5 gal)
- Net weight: 355 kg (782 lbs)
- Towing capacity: 612 kg (1349 lbs)
- Payload capacity: 170 kg (375 lbs)
- Rack capacity (Front/Rear): 30 kg (66 lbs) / 60 kg (132 lbs)
Transmission
- CV-Tech IBC clutch system: Variable transmission.
- Gear box: L / H / N / R / P (parking lock shift system)
- Power train: 2WD/ 4WD, electric locking differential
Wheels
- Front wheels: Aluminum wheels alloy (12 x 6 in)
- Rear wheels: Aluminum wheels alloy (12 x 7.5 in)
- Front tires: AT 25 x 8-12
- Rear tires: AT 25 x 10-12
Suspension and steering
- Front suspension: Double arched A-arm independant
- Front travel: 190 mm (7.5 in)
- Rear suspension: Double A-arm independant
- Rear travel: 225 mm (8.9 in)
- Steering: Electric Power Steering (EPS)
Brakes
- Brakes: Front axles: Double-disc / Rear axles: Single-disc
Top Features
- Fuel injected 495 cc engine
- Electric power steering (EPS)
- Digital display dashboard with full instrumentation
- 12V and dual USB outlet
- Mirrors and handguards
- Aluminum wheels
- LED headlight with integrated turn signals
NOTES:
*The price indicated does not include registration fees, transportation, preparation, the cost of accessories and the installation of these. Furthermore taxes. Photos for illustrative purposes only, accessories not included. Specifications can change.
DIMENSIONS/CAPACITIES
Passengers: -
Odometer: 0km
Brand: CFMoto
Model: Cforce 500
Body Style: ATV
