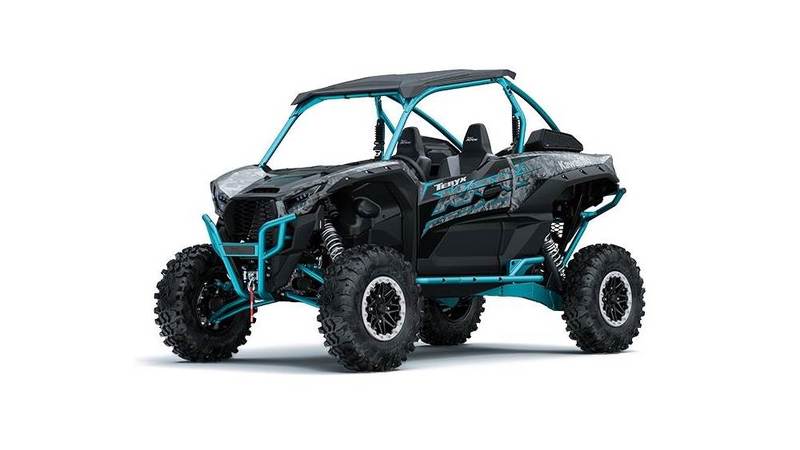

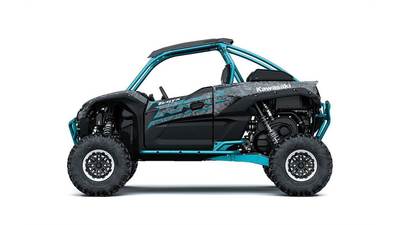

2023 KAWASAKI Teryx Krx 1000 Trail Edition



















Call for price

$0

Used
0KM
Availability: Brochure
Location: Kingston
SHOPPING OPTIONS
Get a QuoteFinancing Pre-ApprovalTrade in QuoteRequest BrochureBook a Test Drive
    Power
    • Engine: 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
    • Bore x Stroke: 92.0 x 75.1 mm
    • Compression Ratio: 11.5:1
    • Fuel System: Fuel injection: Ìü50 mm x 2
    • Ignition: Digital
    • Starting: Electric
    • Lubrication: Forced lubrication, wet sump
    • Transmission: Dual-range (high/low) CVT with centrifugal clutch and reverse
    • Final Drive: 2WD/4WD, shaft
    Capability
    • Frame: Ladder type, tubular steel
    • Front Suspension / Wheel Travel: Double wishbone, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 472 mm (18.6 in.)
    • Rear Suspension / Wheel Travel: 4-link trailing arm rear suspension, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 536 mm (21.1 in.)
    • Steering: Rack and pinion with Electric Power Steering
    • Rake / Trail: 10.0 deg. / 65 mm
    • Steering Angle (L/R): 34 deg. (in.) / 29 deg. (OUT), 34 deg. (in.) / 29 deg. (OUT)
    • Front Tires: MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
    • Rear Tires: MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
    • Front Brakes: Dual Ìü258 mm discs with twin-piston (Ìü32 mm x2) calipers
    • Rear Brakes: Dual Ìü258 mm discs with single-piston (Ìü38 mm x1) calipers
    • Parking Brake: Auto-adjust mechanical disc
    Details
    • Dimensions (LxWxH): 3,385 x 1,730 x 1,945 mm (133.3 x 68.1 x 76.6 in.)
    • Wheelbase: 2,510 mm (98.8 in.)
    • Road Clearance: 345/360 mm (standard/max preload) (13.6/14.2 in (standard/max preload))
    • Seat Height: 790 mm (31.1 in.)
    • Curb Mass**: 916 kg (2,019 lb.)
    • Fuel Capacity: 40 litres
    • Tread (F/R): 1,505 mm (59.3 in.) / 1,510 mm (59.4 in.)
    • Turning Radius: 6.2 m (20.3 ft)
    • Cargo Bed Dimensions (LxWxH): 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in.)
    • Cargo Bed Capacity: 159 kg (351 lb.)
    • Seating Capacity: 2
    • Vehicle Load Capacity: 354 kg (780 lb.)
    • Lighting: 2x LED headlights
    • Instrumentation: Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CVT temperature gauge, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, CVT belt warning lamp, low-battery warning lamp
    • Warranty: 6 months
    • Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
    NOTES:

    **Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
    KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2019 Canadian Kawasaki Motors Inc.
    Specifications subject to change.
