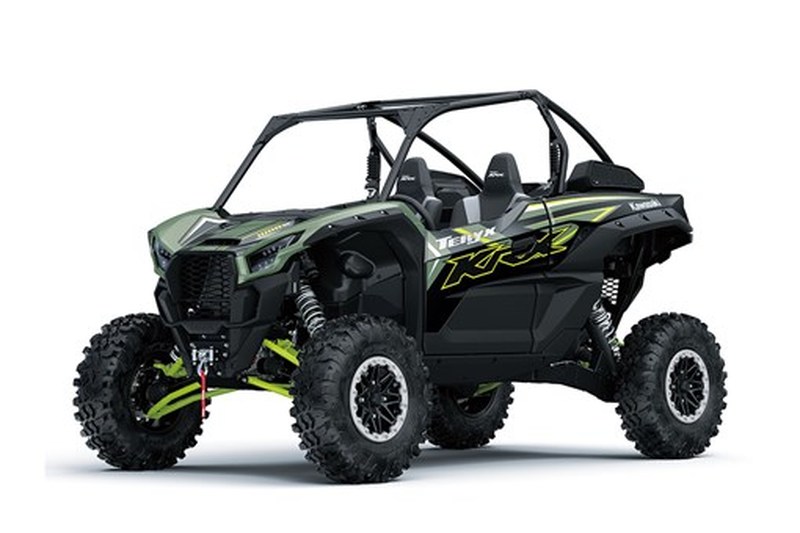

2024 KAWASAKI Teryx Krx 1000 Special Edition

Engine: 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin

Bore x Stroke: 92.0 x 75.1 mm

Compression Ratio: 11.5:1

Fuel System: Fuel injection: Ìü50 mm x 2

Ignition: Digital

Starting: Electric

Lubrication: Forced lubrication, wet sump

Transmission: Dual-range (high/low) CVT with centrifugal clutch and reverse

Final Drive: 2WD/4WD, shaft

Frame: Ladder type, tubular steel

Front Suspension / Wheel Travel: Double wishbone, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 472 mm (18.6 in)

Rear Suspension / Wheel Travel: 4-link trailing arm rear suspension, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 536 mm (21.1 in)

Steering: Rack and pinion with Electric Power Steering

Rake / Trail: 10.0å¡ / 65 mm

Steering Angle (L/R): 34å¡ (IN) / 29å¡ (OUT), 34å¡ (IN) / 29å¡ (OUT)

Front Tires: MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels

Rear Tires: MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels

Front Brakes: Dual Ìü258 mm discs with twin-piston (Ìü32 mm x2) calipers

Rear Brakes: Dual Ìü258 mm discs with single-piston (Ìü38 mm x1) calipers

Parking Brake: Auto-adjust mechanical disc

Dimensions (LxWxH): 3,305 x 1,730 x 1,895 mm (130.1 x 68.1 x 74.6 in)

Wheelbase: 2,510 mm (98.8 in)

Road Clearance: 350/365 mm (standard/max preload) (13.8/14.4 in (standard/max preload))

Seat Height: 795 mm (31.3 in)

Curb Mass**: 893 kg (1,969 lb)

Fuel Capacity: 40 litres

Tread (F/R): 1,505 mm (59.3 in) / 1,510 mm (59.4 in)

Turning Radius: 6.2 m (20.3 ft)

Cargo Bed Dimensions (LxWxH): 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in)

Cargo Bed Capacity: 159 kg (351 lb)

Seating Capacity: 2

Vehicle Load Capacity: 354 kg (780 lb)

Lighting: 2x LED headlights

Instrumentation: Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CVT temperature gauge, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, CVT belt warning lamp, low-battery warning lamp

Warranty: 6 months

Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
