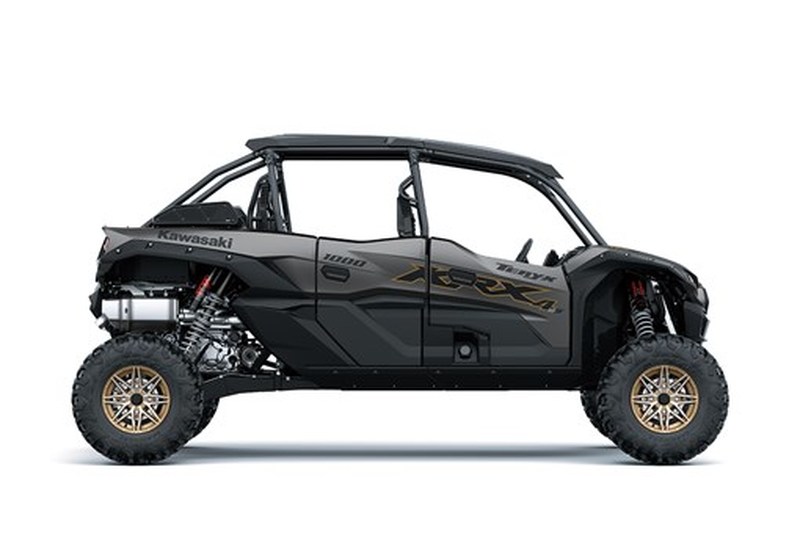

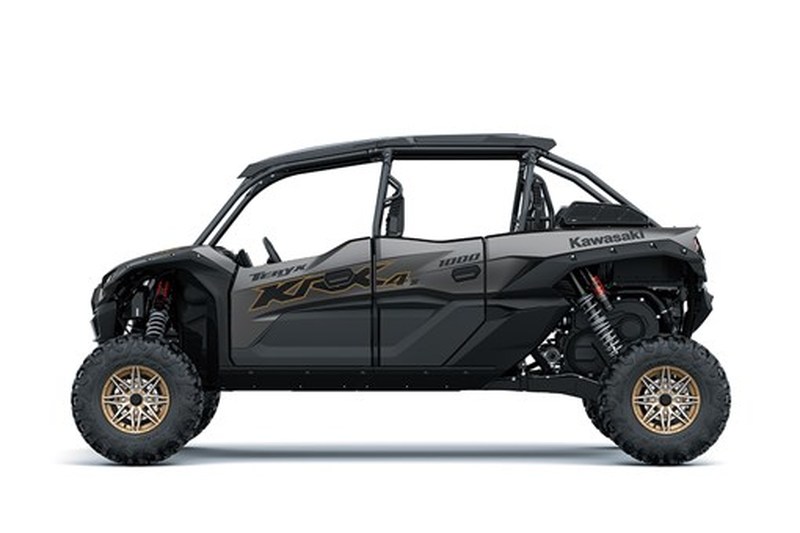

2024 KAWASAKI Teryx Krx4 1000 Es Special Edition

Engine: 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin

Bore x Stroke: 92.0 x 75.1 mm

Compression Ratio: 11.5:1

Fuel System: Fuel injection: Ìü50 mm x 2

Ignition: Digital

Starting: Electric

Lubrication: Forced lubrication, wet sump

Transmission: Dual-range (high/low) CVT with centrifugal clutch and reverse

Final Drive: 2WD/4WD, shaft

Frame: Ladder type, tubular steel

Front Suspension / Wheel Travel: Double wishbone, FOX 2.5 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually-adjustable spring preload / 472 mm (18.6 in)

Rear Suspension / Wheel Travel: 4-Link Trailing Arm rear suspension, FOX 2.5 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually-adjustable spring preload / 536 mm (21.1 in)

Steering: Rack and pinion with Electric Power Steering

Rake / Trail: 10.0å¡ / 65 mm

Steering Angle (L/R): 34å¡ (IN) / 29å¡ (OUT), 34å¡ (IN) / 29å¡ (OUT)

Front Tires: MAXXIS Carnivore 31 x 10.00R15 8PR

Rear Tires: MAXXIS Carnivore 31 x 10.00R15 8PR

Front Brakes: Dual Ìü258 mm discs with twin-piston (Ìü32 mm x2) calipers

Rear Brakes: Dual Ìü258 mm discs with single-piston (Ìü38 mm x1) calipers

Parking Brake: Auto-adjust mechanical disc

Dimensions (LxWxH): 3,995 x 1,730 x 2,015 mm (157.3 x 68.1 x 79.3 in)

Wheelbase: 3,195 mm (125.8 in)

Road Clearance: 345/365 mm (standard/max preload) (13.6/14.4 in (standard/max preload))

Seat Height: 810 (F) / 820 (R) mm (31.9 (F) / 32.3 (R) in)

Curb Mass**: 1,001 kg (2,207 lb)

Fuel Capacity: 40 litres

Tread (F/R): 1,505 mm (59.3 in) / 1,480 mm (58.3 in)

Turning Radius: 7.1 m (23.3 ft)

Cargo Bed Dimensions (LxWxH): 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in)

Cargo Bed Capacity: 159 kg (351 lb)

Seating Capacity: 4

Vehicle Load Capacity: 454 kg (1,000 lb)

Lighting: 2x LED headlights

Instrumentation: 7‰Û high-grade full-colour TFT LCD screen with speedometer, tachometer, fuel gauge, gear indicator (L, H, N, R), Driving Mode (2WD/4WD/4WD+Diff Lock), Power Mode (Full/Low), Suspension Mode (Soft/Normal/Firm), clock, CVT temperature; selectable display that includes: digital tachometer, odometer, dual trip meters, total time, trip time, average speed, water temperature, battery voltage; Economical Riding Indicator, maintenance reminder (2 driver-selectable reminders), and a range of indicators and warning lamps

Warranty: 6 months

Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
