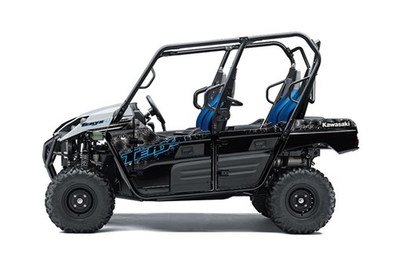

2024 KAWASAKI Teryx4

Engine: 783cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90å¡ V-twin

Bore x Stroke: 85.0 x 69.0 mm

Compression Ratio: 10.7:1

Fuel System: Fuel injection: Ìü36 mm x 2

Ignition: Battery & coil (transistorised ignition)

Starting: Electric

Lubrication: Forced lubrication, wet sump

Transmission: Dual range CVT with centrifugal clutch and reverse

Final Drive: 2WD/4WD, shaft

Frame: Double-X reinforcement type, tubular carbon steel

Front Suspension / Wheel Travel: Double wishbone, FOX 1.5 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 202 mm (8.0 in)

Rear Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 210 mm (8.3 in)

Steering: Rack and pinion with Electric Power Steering

Rake / Trail: 4.2å¡ / 22 mm

Steering Angle (L/R): 40å¡ (IN) / 32å¡ (OUT), 40å¡ (IN) / 32å¡ (OUT)

Front Tires: MAXXIS 26 x 9R12 6PR

Rear Tires: MAXXIS 26 x 11R12 6PR

Front Brakes: Dual Ìü200 mm discs with two-piston calipers

Rear Brake: Enclosed wet multi-plate

Parking Brake: Enclosed wet multi-plate

Dimensions (LxWxH): 3,185 x 1,525 x 1,975 mm (125.4 x 60.0 x 77.8 in)

Wheelbase: 2,175 mm (85.6 in)

Road Clearance: 285 mm (11.2 in)

Seat Height: 855 (F) / 910 (R) mm (33.7 (F) / 35.8 (R) in)

Curb Mass**: 728 kg (1,605 lb)

Fuel Capacity: 30 litres

Tread (F/R): 1,295 mm (51.0 in) / 1,275 mm (50.2 in)

Turning Radius: 5.1 m (16.7 ft)

Cargo Bed Dimensions (LxWxH): 455 x 1,210 x 220 (F) / 125 (R) mm (17.9 x 47.6 x 8.7 (F) / 4.9 (R) in)

Cargo Bed Capacity: 113 kg (250 lb)

Seating Capacity: 4

Vehicle Load Capacity: 503 kg (1,109 lb)

Towing Capacity: 590 kg (1,300 lb)

Lighting: 2x halogen headlights

Instrumentation: Multi-function digital meter with digital speedometer, bar-style fuel gauge, clock, odometer, dual trip meters, hour meter, 2WD/4WD indicator, front differential lock indicator light, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, water temperature warning indicator, fuel injection warning indicator, oil pressure warning lamp

Warranty: 36 months

Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
